4AGE20V Blacktop Pinout Update

In this image, what I've update is different between CF-cooling fan relay and ELS1-cooling fan relay. It should be CF is A/C fan relay and ELS1 is radiator fan relay.

Air bertakung di lantai kerete

Kali ni aku nak tunjuk kenape setiap kali lepas ujan, maka bertakunglah air di lantai kete aku. Sebabnye ialah terdapat ruang kosong di bahagian column steering di firewall, situ lah tempat air masuk.

Lepas tu aku tutup lubang tu dengan silikon glue. Setel 1 masalah.

DIY change fuel filter for AE111 4AGE20v

Hi all, just wanna share how to replace a fuel filter on AE111 4AGE engine. I think AE101, AE92 and 4AFE engine would be the same.
p/s: Proton wira fuel filter also can be use but it come without bracket.
1-Remove fuel hose at bottom of the fuel filter. 14mm nut

2-Remove fuel filter holder at the side of the body. 10mm nut

3-Remove fuel hose at top of the filter. 17mm nut

4-As we can see here yellow Ron95 petrol has turn to black and maybe clogged injector too.

5-New fuel filter on the left.

6-New filter on the right.

After change to new fuel filter, my butt can feel my car more responsive.

MYVI Brake master pump repair kit replacement

In this thread I gonna show I've replace brake master pump with the repair kit. I've perform this operation on my wife myvi 1.3 AT with ABS. The symptom is the brake pedal will go straight away to floor when press the pedal while driving. Everytime has to pump it 2-3 times until can feel the brake operate.

 Tools needed
1- C clip plier
2- 12 mm spanner
3- 10 mm spanner
4- 8 mm spnanner
5- tubing
6- bottle
7- 10 mm open end hexagon spanner


1- Contain of repair kit

Repair kit

2- First thing to do is to drain brake fluid from the container. Then I can proceed to next step remove the master pump.

 3- Before I can remove master pump, I have to remove steering fluid container so that I can have wider work space.

4- Then by using this tool (this tool is a must), else I will rounded the brake hose nut. There is 2 nut to be remove. Better to put a cloth underneath it becoz there will be brake fluid dripping.

5- Remove 2 nut that hold the master pump at servo body. Then I can took out the master pump assy.

6- When I got master pumpin my hand, firstly I have to remove C clip by using C clip plier. After that I can remove 2 oil seal that hold by the C clip. Sorry forgot to take picture for this step.

7- Inside the master pump, it consist 2 pistons, 2 springs and a pin. Will show the pic later. I can remove 1st piston easily after remove the oil seal and I can see 2nd piston inside but can remove it. Why? coz it hold by a pin.

 8- So I've to remove container to get the pin out. I use a nail and hammered at pin that hold the container.

9- Now I can see the pin that hold 2nd piston. I push in 2nd piston and tap master pump body in my hand to get the pin out.

10- With 2nd piston already outside, now I got the answer. Oil seal for the piston already tear.

11- Replace all the items that comes with repair kit and put it back in reverse order.

 12- After installation finished, I have to bleed the brake fluid. Bro IZSO already post how to bleed brake fluid. I also build my own tool to bleed brake fluid as picture below. I just put a check valve in the middle of the tube so that I can perform brake fluid bleeding by myself.

4AGE20V oil filter relocate

Lama giler tak update blog ni... Kali ni aku nak tunjuk DIY Oil Filter Relocation Kit installation. Kete aku ni nak kene relocate oil filter pasal lepas gi tukar aftermarket nye extractor, salah 1 piping tu rapat sangat dengan oil filter. Sepatutnye nak kene pasal oil cooler sekali, tapi sebabkan bajet, relocate jer la dulu.

Ni dah siap pasang

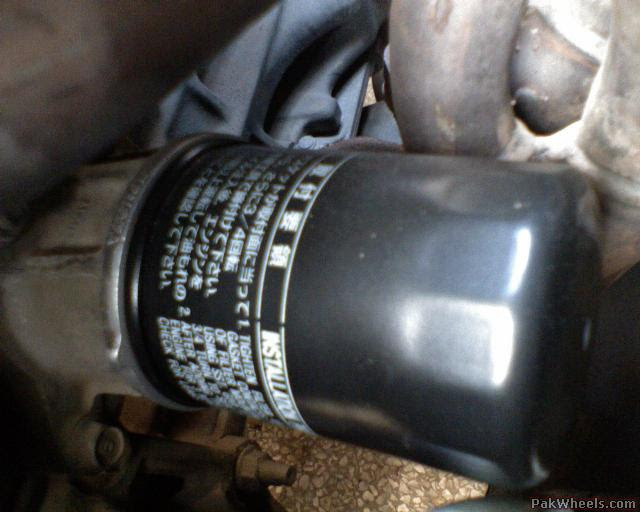

Gambar oil filter dengan stock extractor

Ni gambar close up pipe extractor dengan oil cooler adapter. Still rapat lagi.

Aku letak oil filter kat area washer tank. Washer tank dah takder, pecah. Oil filter relocate kit aku beli kat mudah.my. Hos ngan fitting aku gi buat kat kedai hidraulik
